Αρχική Σελίδα /Προϊόντα/Ηλεκτρικός κινητήρας υψηλής ροπής/Waterproof Type 1.8 Degree New Arrival IP65 NEMA 23 Bipolar Hybrid Stepper Motor PST57IP276-4F50S

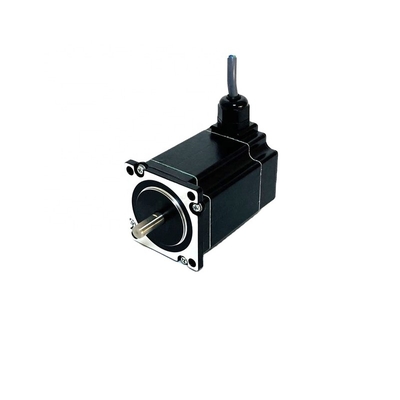

Waterproof Type 1.8 Degree New Arrival IP65 NEMA 23 Bipolar Hybrid Stepper Motor PST57IP276-4F50S

1 Piece
MOQ
$27.20(1 - 9 Pieces) $23.70(10 - 99 Pieces) $22.40(>=100 Pieces)
τιμή
Waterproof Type 1.8 Degree New Arrival IP65 NEMA 23 Bipolar Hybrid Stepper Motor PST57IP276-4F50S
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Warranty: 1year
Model Number: PST57IP276-4F50S
Phase: 2
Type: Hybrid
Current / Phase: 4A
Product name: PST57IP276-4F50S
Torque: 2N.m
Inductance: 1.8mH
Step angle: 1.8degree
Weight: 2.4kg
Color: Black Silver
MOQ: 10PCS
Πιστοποίηση: ce, ISO, RoHS
Βασικές πληροφορίες
Πιστοποίηση: ce, ISO, RoHS
Model Number: PST57IP276-4F50S
Πληρωμής & Αποστολής Όροι
Packaging Details: Inner packing foam filling, outer packing carton sealing film,carton size 39*24*17cm,a case of 40 units
Supply Ability: 250000 Piece/Pieces per Month Prostepper posses an annual production of over 3 million motors.
Περιγραφή προϊόντων
Product Description
1.Accurate position Control
The angular displacement of the stepping motor can be precise controlled by the number of electrical pulses.Angle accuracy can be controlled within ±0.09°without any feedback devices.
2.Automatic assembly line
Automatic assembly line, improve production efficiency, low cost without human operation, one line down intelligent mechanical automatic assembly
3.Strictly control the production of parts to improve the quality of parts
4.Automatic machine operation, stable automatic work, high processing efficiency.
5.Electromagnetic furnace optimization design, lift torque, reduce temperature rise, so that the motor running smoothly

Specification
Holding Torque
2N.m
Related Current
5A/Phase
Resistance
0.37Ω /Phase
weight
2.4KG
Inertia g.cm2
480
IP Rating
IP65

Speed/Torque Characteristics(Reference Value)
Online testing of technical parameters to ensure the consistency of data product parameters
Outline(Unit:mm)
Applications:



Used for robots stepper motor
Electronic automatic equipment stepping motor
Medical instrument stepping motor
Advertising instrument stepper motor
Lighting& audio equipment stepper motor

Quality control process


1.Incoming inspection: The inspection shall be conducted according to the Requirements of the Incoming Inspection Specification or the product drawing
2.Monitoring and measurement of production process
(self-inspection - inspection - batch production)
3.Final inspection and test
4.All inspectors must be trained and then put on duty
Packing & Delivery
Trade Mark: Prostepper
Payment: TT, L/C, DP, Alipay
Delivery time: 2~3 weeks
Export port: Shanghai China
Origin: ChangZhou, China
HS Code: 8501109990
Company Profile
Welcome To Prostepper
Changzhou Prostepper Co.,Ltd.established as a high-tech company in 2004,engaging in developing designing and producing professional stepping motor and DC brushless motor.Prostepper posses an annual production of over 1.5 million motors.
Prostepper has a large customers group across over the world,with products being exporting to over 10 countries,including the United States;Germany;Switzerland;Italy
Korea and JAPAN,etc,Our products are widely used in various industries,such as textile machinery;medical;robotics;packaging;
printing;communications;office automation;semiconductor industry and different industrial automation equipment.
We are eager to achieve the value for our customer products as well as create and win the future strategic opportunities with them together.

Supply Ability:250000 pcs/ per Month

Terms of sales
1.We accept 14 days return policy.
2.We make sure the item is brand new with original package and offer 1 year warranty for the quality
FAQ
Q1: What about your warranty?
A: We guarantee is one year for sea order .
Q2: Do you have any certificates?
A: Yes, we have. All the motors have been approved by CE and RoHS.
Q3:What's the delivery time ?
A: Except special order. For samples usually 10-14 working days . for batch order . usually 20-25days.
4.Do you receive customization?
We accept customization. We will try our best to meet customer's requirements.
Why Choose Us

We cherish each request from customers, treat it as the progressing opportunity and successfully provide the right, super value and professional solution for many application continuously, which makes us feel proud. We have been continuously strengthening the production system based on automation and precise finishing and have also improve workmanship continuously and bring in the first class production equipment, which guarantee the stability and reliability for our products.
With ISO9001quality management system certificate,all the products are CE certificate with high quality satisfying EU RoHs 2.0 requirements.
We are eager to achieve the value for our customer products as well as create and win the future strategic opportunities with them together.
